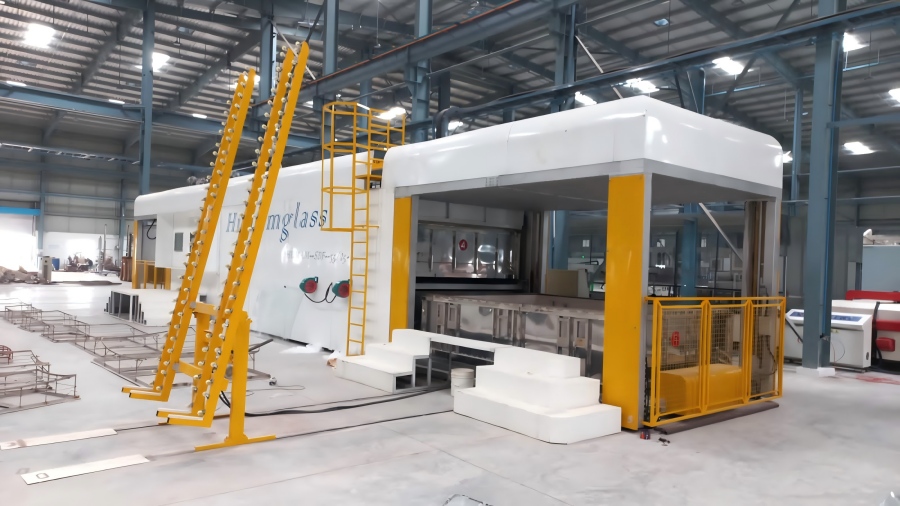

產品說明：
主要應用于轎車/貨車前擋玻璃的預熱抽真空處理。
For windshield pre heating and vacuum processing after assembling with PVB.
采用西門子PLC 控制系統，西門子溫度模塊采集溫度，觸摸屏顯示。
With SIEMENS PLC control system,SIEMENS temperature module collects temperature and display on screen.
可全自動或者手動操作，爐腔內受熱均衡，產品質量高。
Comes with Auto and manual modes,furnace inside heating evenly.
設備有故障報警功能，觸摸屏顯示報警狀態，PLC 輸出蜂鳴器提示。
The system has fault alarm,alarm status shown on screen,buzzer warning alarm.
產品性能符合GB-9656 汽車用安全玻璃質量標準。
The product performance is accord with the quality standard of GB-9656 automotive safety glass.
抽真空爐/Pre-heating Vacuum Fu
產品說明：

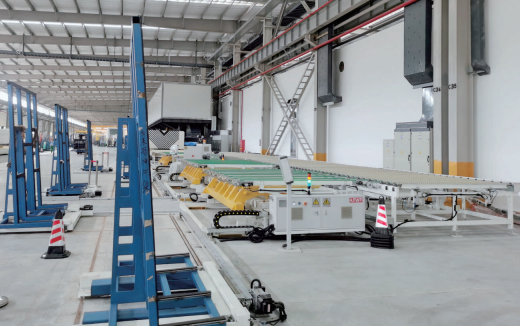

在線理片系統用于磨邊前，鋼化前，中空前和夾膠前玻璃儲存和分揀。讓產線更合理，更節能，更高效。
The sorting system is used for glass storage and sorting before edging line,tempering furnace,IG line and laminated line.To make more reasonable,energy saving and high efficient production line.

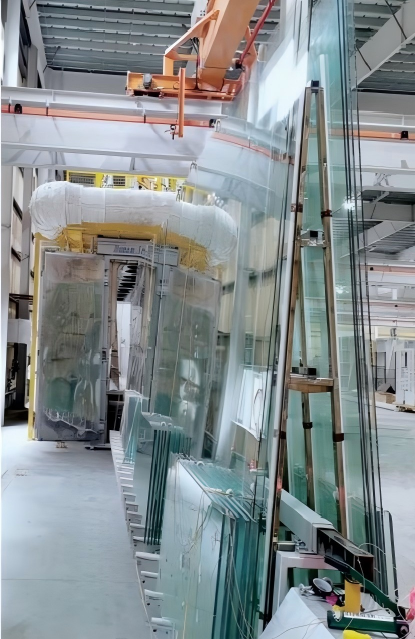

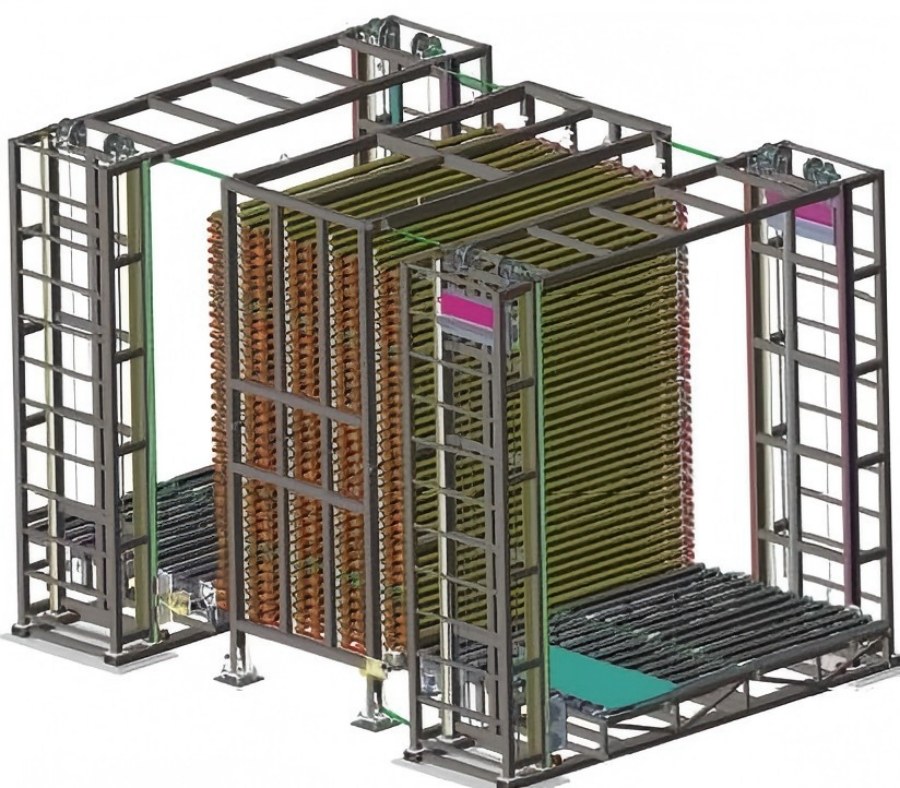

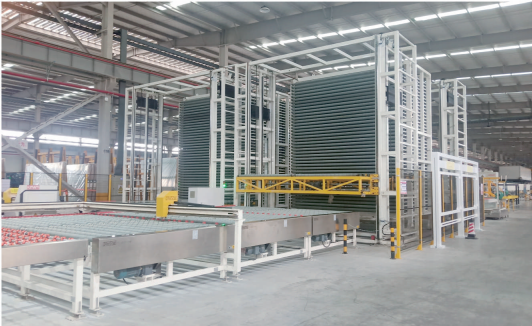

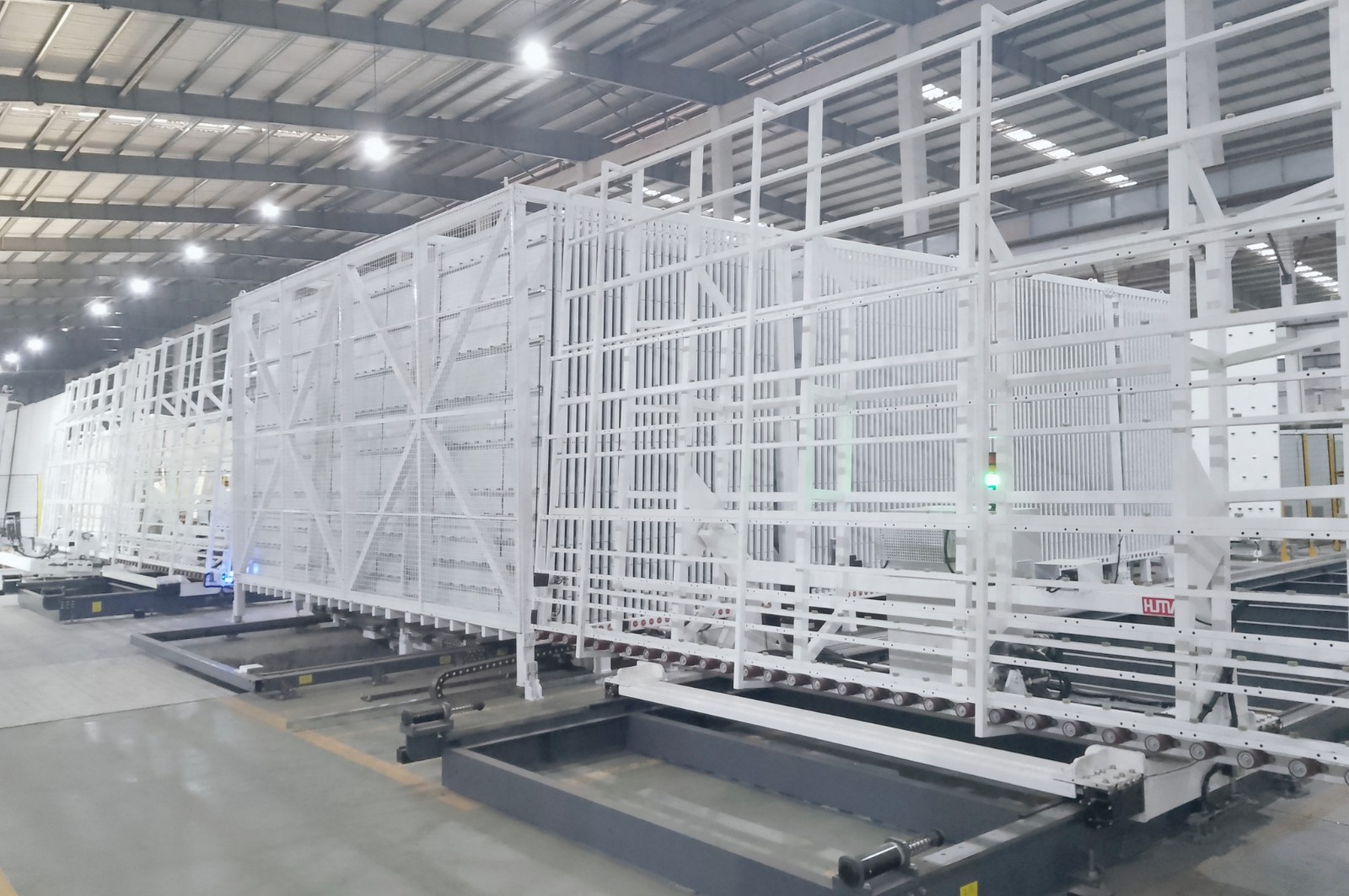

立式理片系統
Vertical Sorting Buffer
立式理片籠Vertical Sorting Buffer
對接ERP 有效跟蹤
Connecting ERP system for tracking
成品分架
Sorting rack for finished products
更有序，更高效
Organized and high efficiency
分架系統
Glass Assorting System
臥式理片系統
Horizontal Sorting System
余料架
Offline Storage System
玻璃理片系統 /Glass Sorting Sy
產品說明：

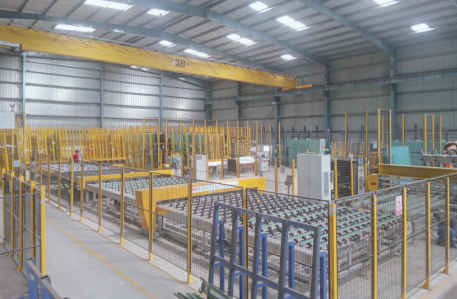

俄羅斯項目(建筑玻璃加工生產線)
Project in Russia(Architecture Glass Processing Line)
以色列項目(門窗玻璃加工生產線)Project in Israel(Windows &Door Glass Processing Line)
沙特項目(門窗玻璃加工生產線)
Project in Saudi Arabia
(Windows &Door Glass Processing Line)
越南項目(中空&夾膠玻璃生產線)
Project in Vietnam
(Insulating &Laminated Glass Processing Line)
西班牙項目(門窗玻璃加工生產線)
Project in Spain
(Windows &Door Glass Processing Line)

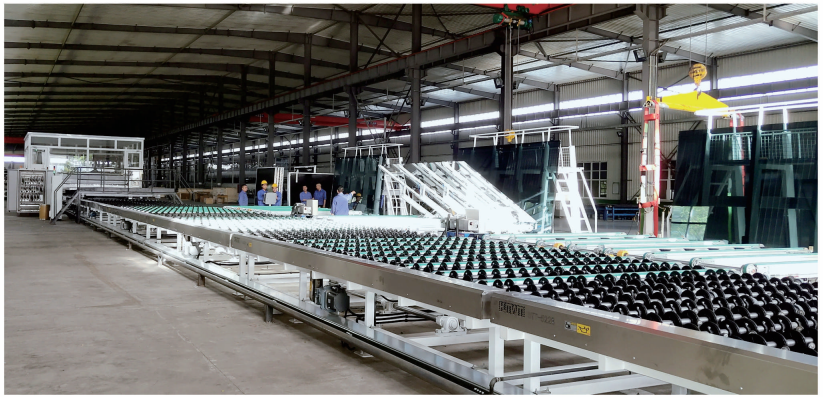

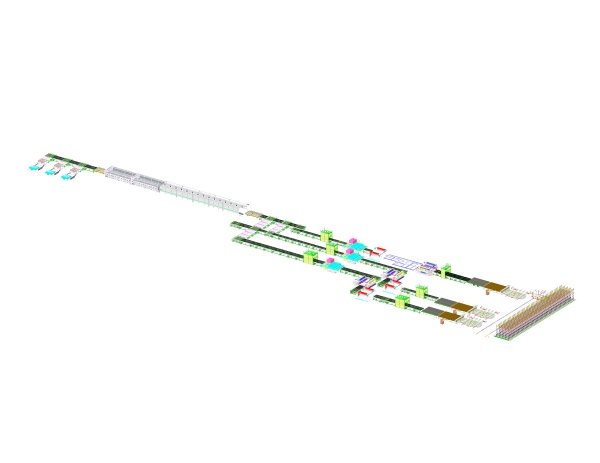

項目連線展示
產品說明：

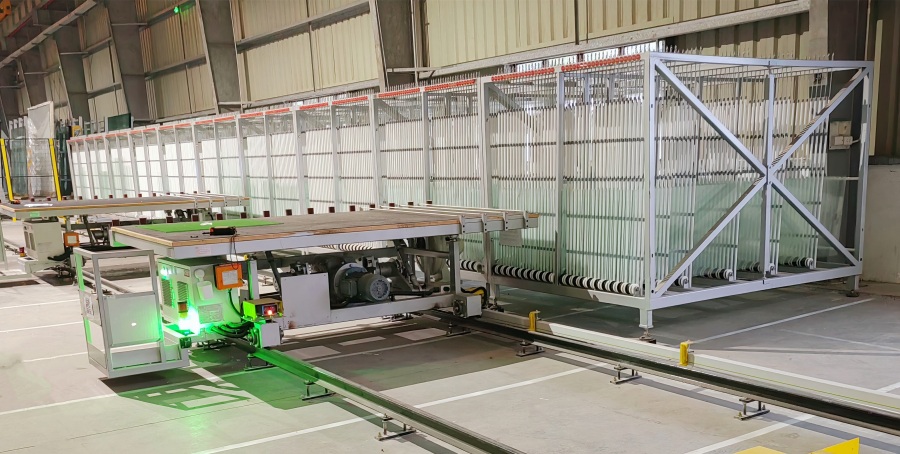

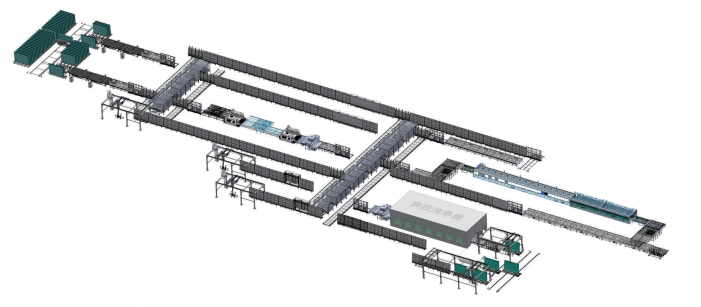

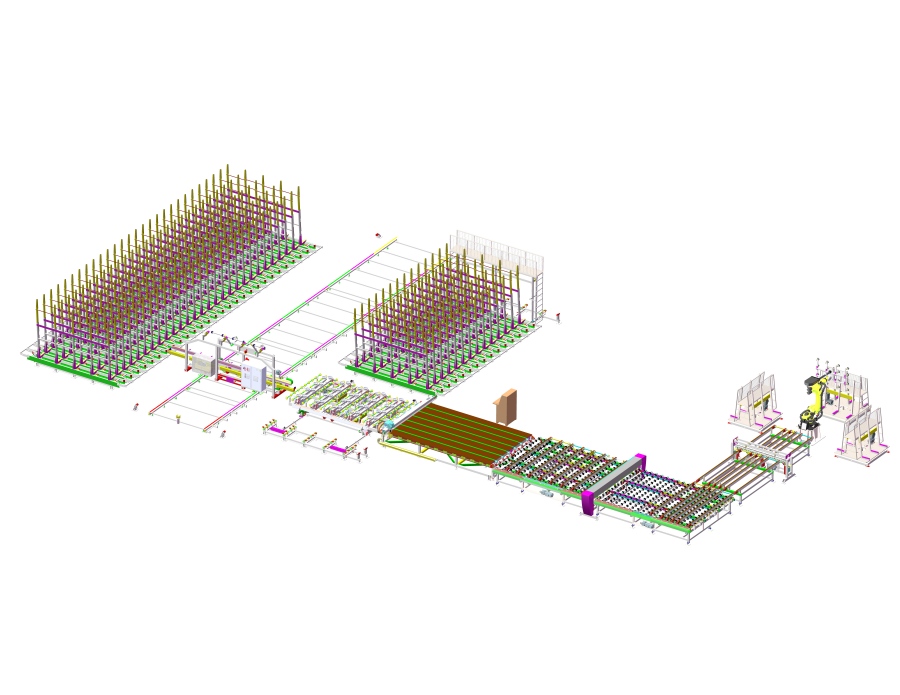

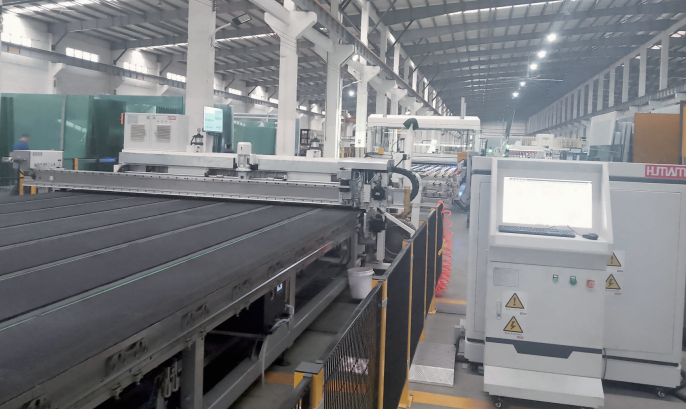

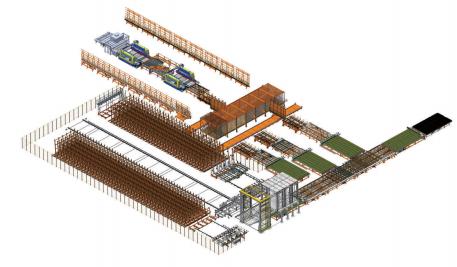

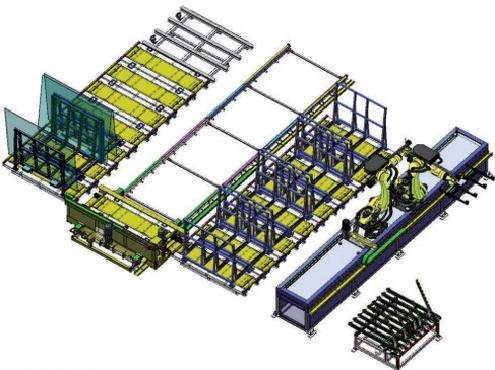

智能原片穿梭倉儲--切割機--自動分片系統--機器人下片系統
Intelligent Glass Storage Shuttle System- Cutting Machine-Auto Break Out System- Robot Unloading.
智能原片倉儲及自動分片系統/?I
產品說明：

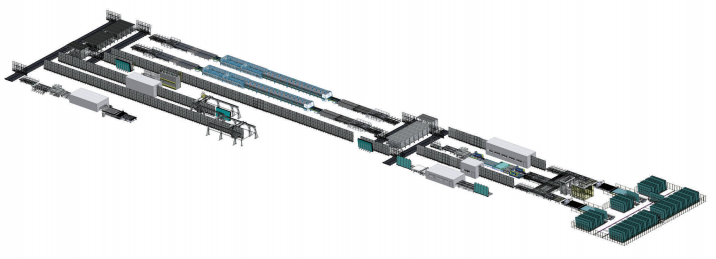

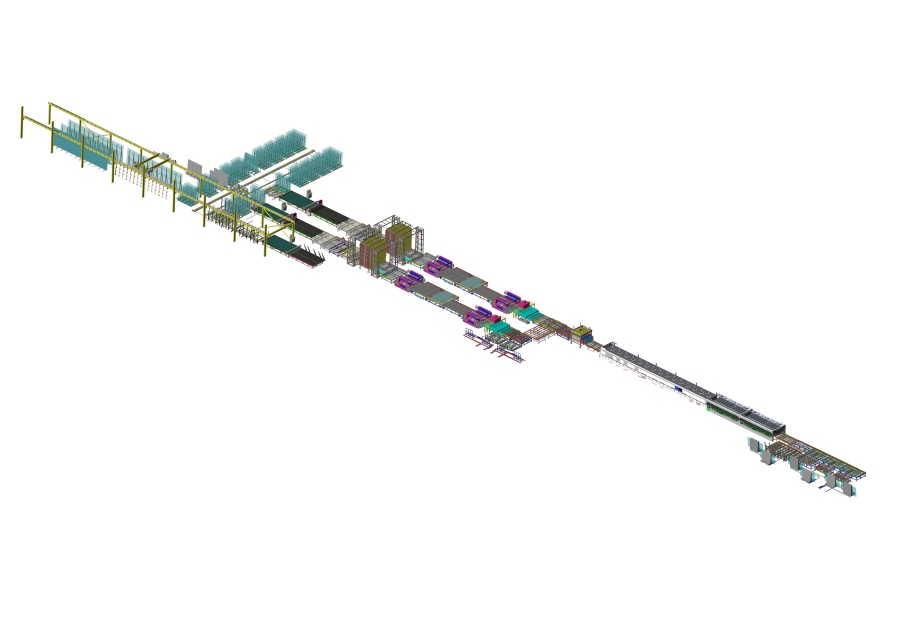

智能原片穿梭倉儲系統--切割機--在線存片架--雙邊磨-鉆孔--清洗機--在線存片架--絲印-- 鋼化爐--下片系統
Glass Storage Shuttle System--Cutting Machine--Online Stacker--Double Edger- Drilling Machine-Washing Machine--Online Stacker--Silk Printing-Tempering Furnace--Unloading System.
家電玻璃加工生產線/Home Applia
產品說明：
智能原片穿梭倉儲和龍門倉儲系統--切割機--激光打碼--水平理片系統--雙邊磨--清洗機-- 水平理片臺--鋼化爐--鋼化下片
Glass storage shuttle system working with storage gantry system--Cutting machine-- Laser marking machine--Horizontal sorting system--Double edger--Washing machine- Horizontal sorting table--Tempering furnace--Furnace unloading
建筑玻璃加工生產線/Architectur
產品說明：

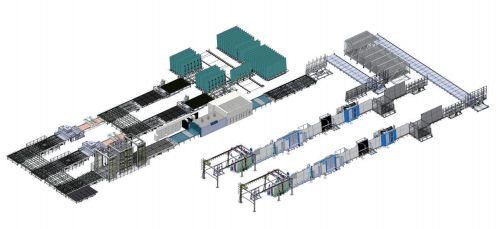

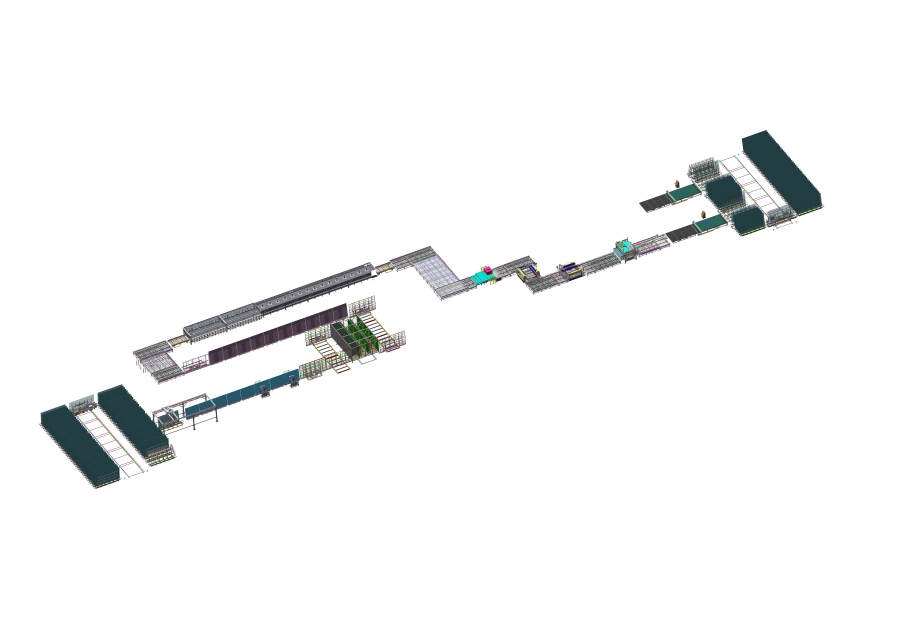

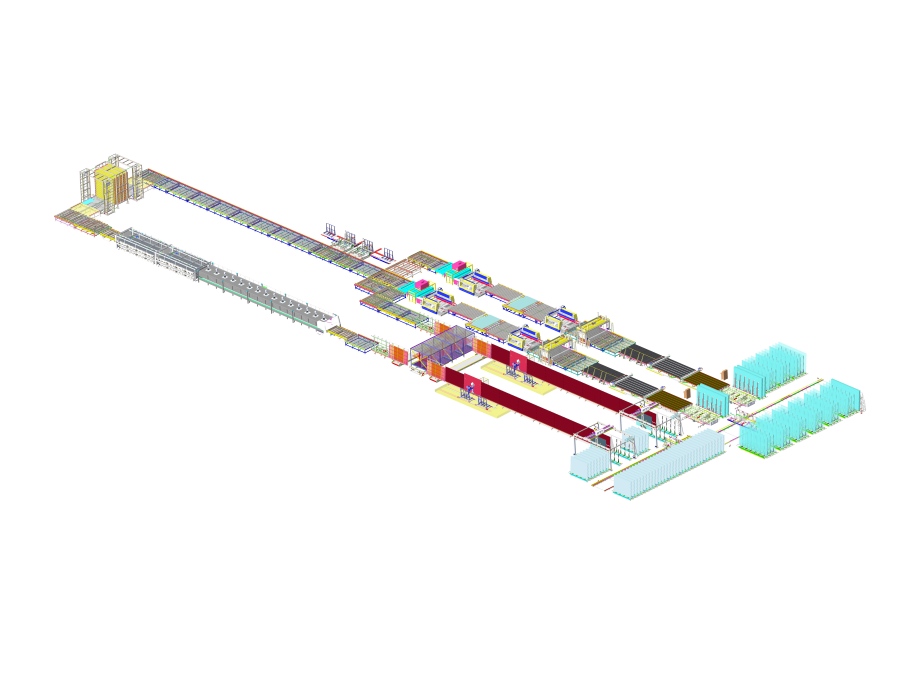

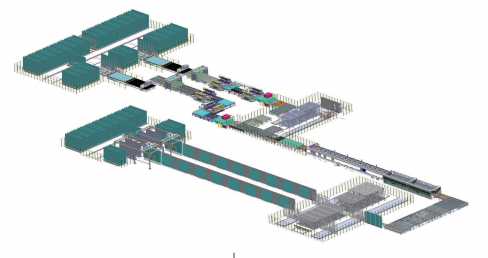

智能原片穿梭倉儲--激光打碼--切割機--水平理片臺--雙邊磨--清洗機--臥式理片系統-- 鋼化爐--立式理片系統--中空線--龍門中空下片--中空成品倉儲
Glass storage shuttle system--Laser marking machine--Cutting machine-
Horizontal sorting table--Double edger--Washing machine--Horizontal sorting buffer- Tempering furnace--Vertical sorting buffer--IG line--Gantry unloading-IGU glass storage system
門窗玻璃加工生產線/Windows &Do
產品說明：
智能原片穿梭倉儲系統--切割打碼一體機--水平理片臺--雙邊磨--清洗機--鋼化爐-- 立式理片系統--中空線--中空玻璃成品智能倉儲系統
Glass storage shuttle system--Cutting &Laser marking machine--Horizontal sorting table--Double edger--Washing machine--Tempering furnace--Vertical sorting buffer- IG line--IGU glass storage shuttle system

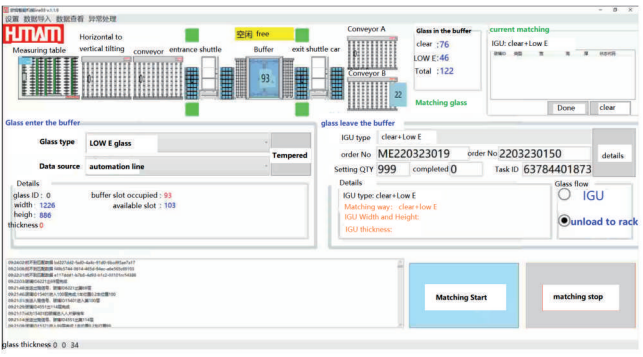

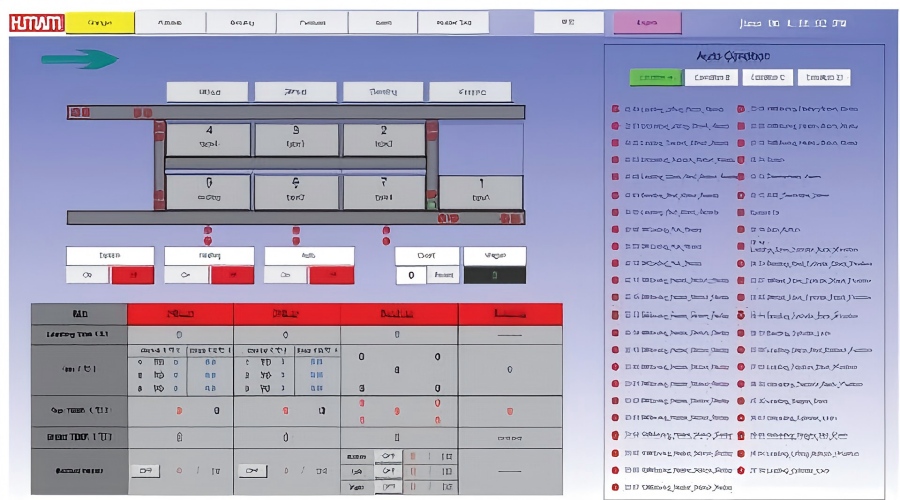

歐姆立式理片系統管理軟件
Humam vertical sorting buffer management software
智能化連線解決方案/Automatic A
產品說明：

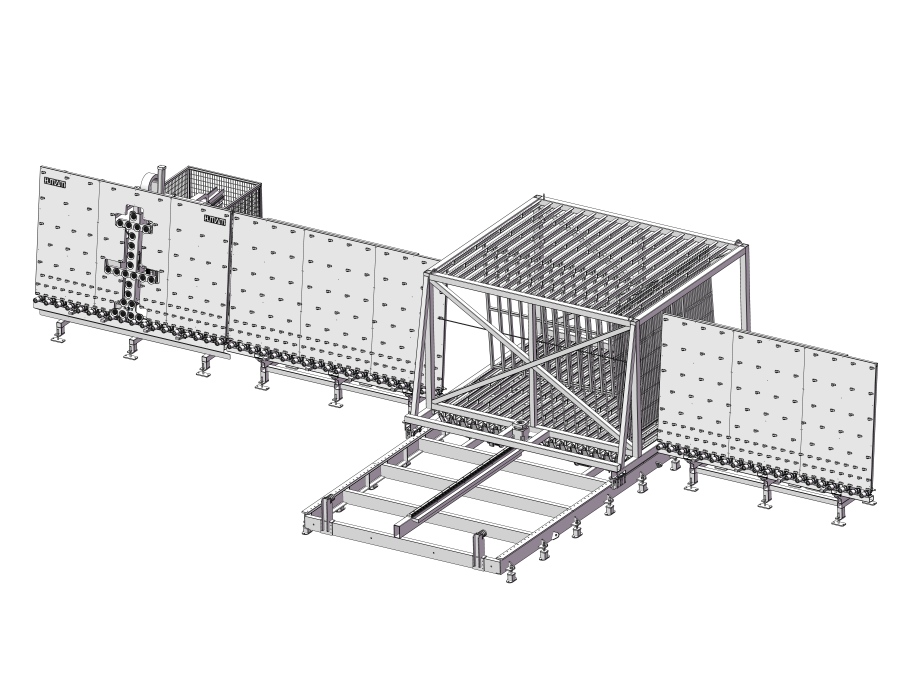

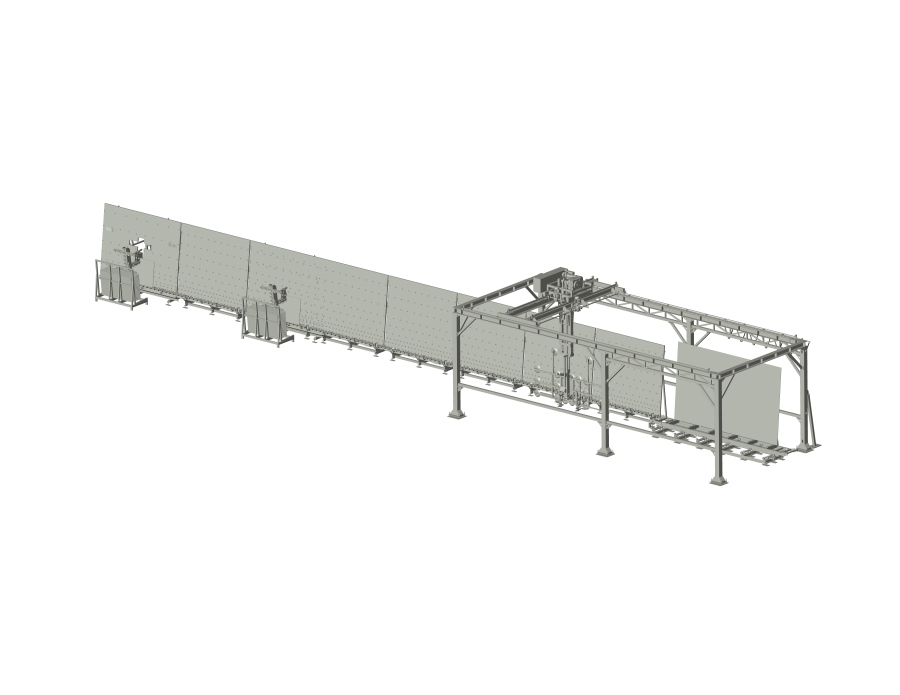

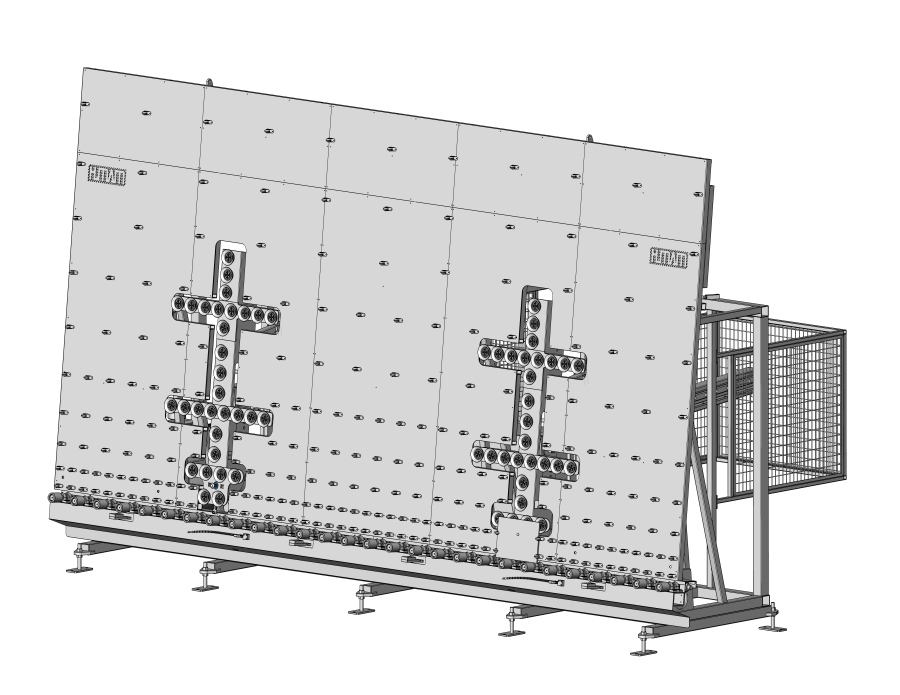

中空線自動上下片
Auto Loading unloading system for IG line

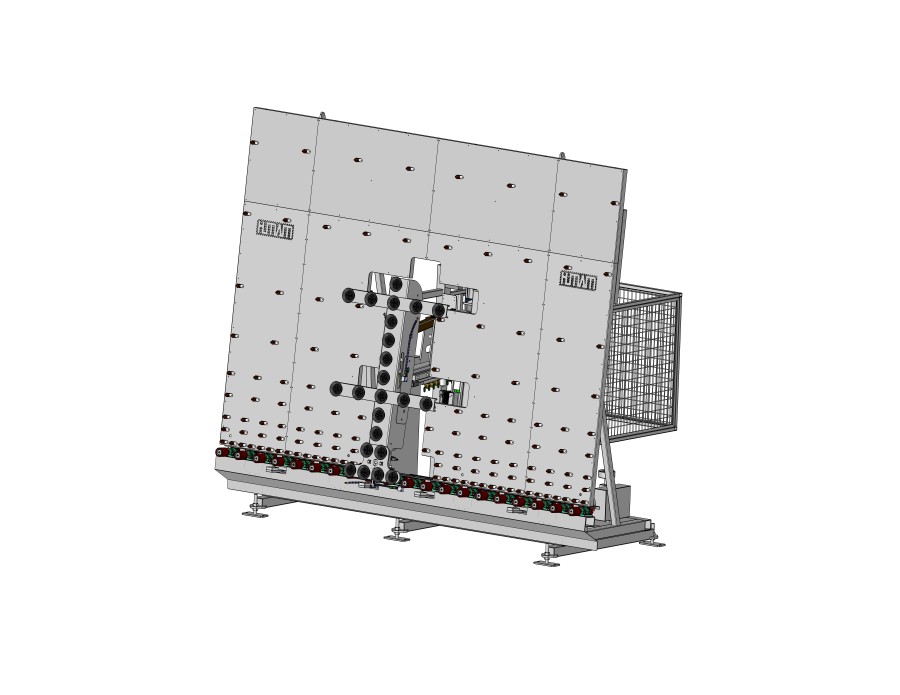

中空上片臺動力系統采用伺服電機。
移動升降翻轉電機變速度均為無級變速，
傳送采用變頻電機；減速機使用精密行星減速機。
采用全閉/半閉環控制系統，對產品定位精準，系統運作穩定。
The vertical loading table use servo motor;The variable speed of the moving/rising and tilting motor are infinitely variable speeds,conveying use variable
frequency motor;and precision planetary reducer;
Adopts full-closed loop control system for precisely positioning and stable running.

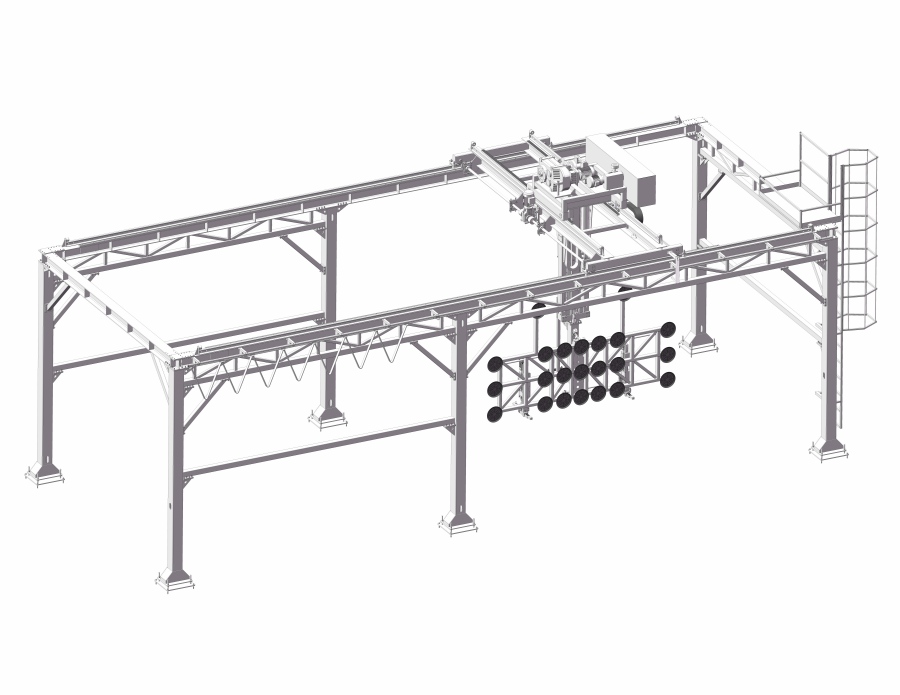

中空下片臺XYZ軸采用伺服電機。
The X,Y,Z axis of Gantry unloader use servo motor.
下片臺XY 軸移動采用齒輪齒條機構，運行平穩。
The X,Y axis of Gantry unloader use gear mechanism.Make sure stable running.
采用全閉環控制系統，對產品定位精準，系統運作穩定。
Adopts full-closed loop control system for precisely positioning and stable running.
X 和Y軸行走和上升下降的動作由伺服馬達控制操作，吸盤吊能自動檢測到玻璃居中吸取然后下 片到玻璃架上。吸盤吊能前后，左右，上下移動。
The Xand Y axis movement and lifting up&down function of the suction cup lifter controlled by the Servo motor.The suction cup system can lift up and down,move forwards and backwards,move left to right.
自動完成中空成品的分箱下片
Unloading to different boxes automatically by gantry unloading system.
全自動玻璃深加工生產線上下片方
產品說明：

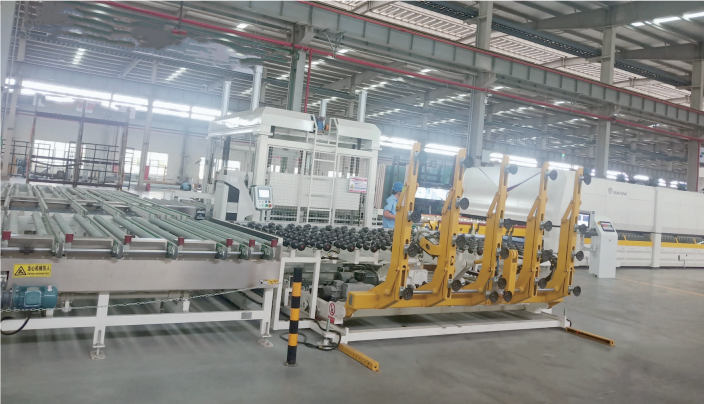

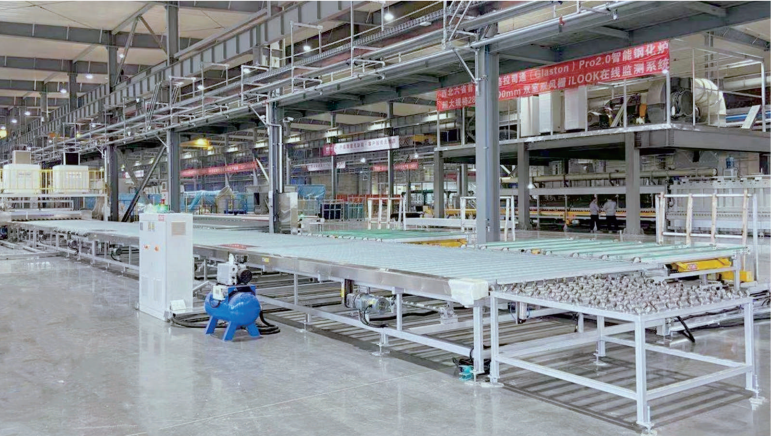

全自動玻璃上下片及連線設備，適用于磨邊，鋼化，夾膠，中空，絲印，制鏡，鍍膜等各類玻 璃深加工生產線的自動上下片配套。設備規格可根據生產要求訂制，操作簡單，性能完善穩
定，安全高效。

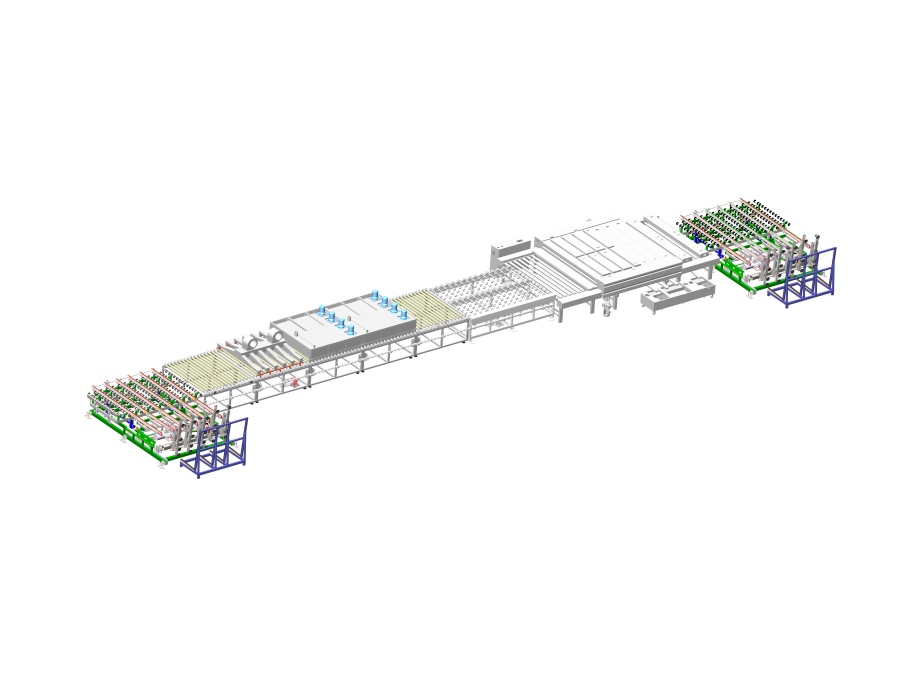

AutoLoading,unloadingand conveyors solutions.Designed for edging line,tempering furnace,laminated line,IG line,printing line,Mirror line,Low-E coating line.The
machines can be customized.with easy operation and stable control system. To reach
safe and high capacity production.

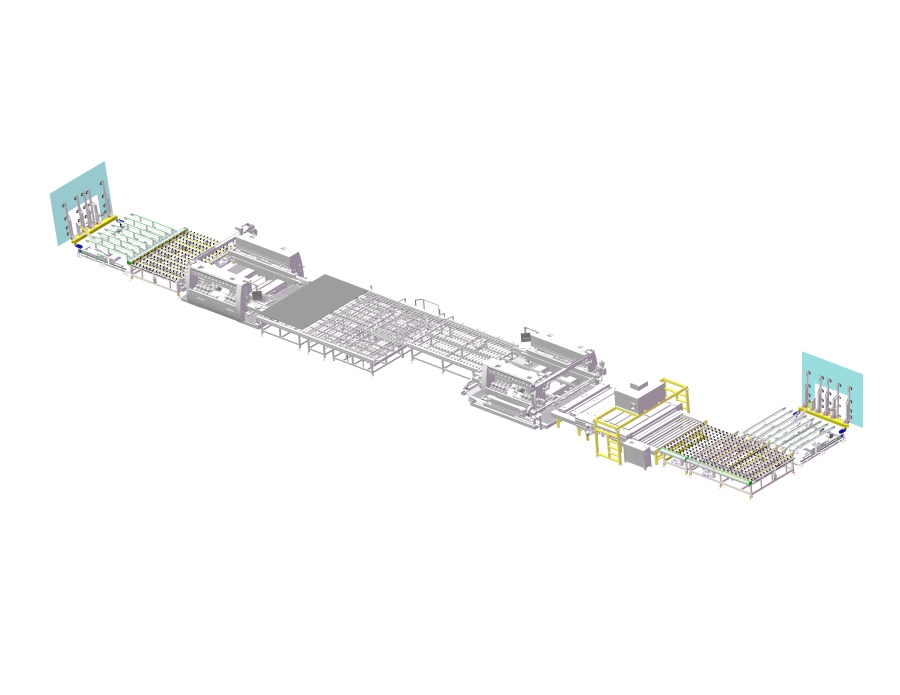

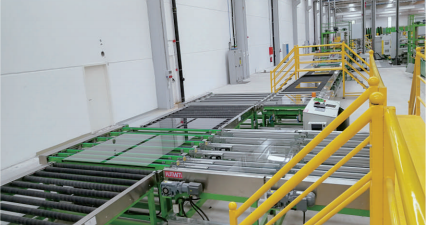

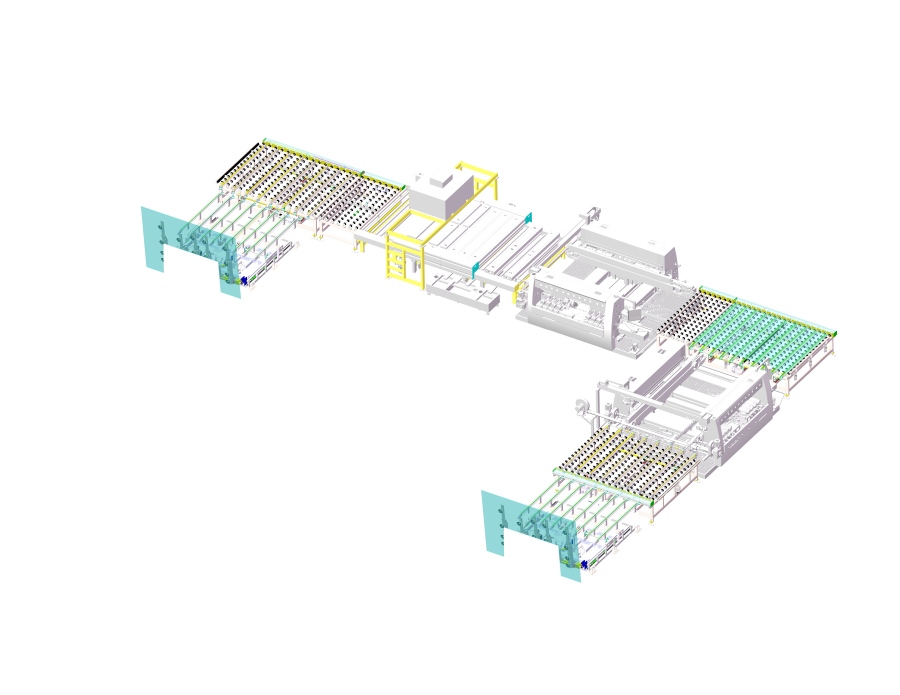

L型雙邊磨自動上下片
Auto Loading Unloading for double edger line in L shape
直線雙邊磨自動上下片Auto Loading Unloading for double edger in straight line
全自動輥印線
Auto roller coating line
鍍膜線上下片Loading Unloading System For Low E Coating Line
全自動玻璃深加工生產線上下片方
產品說明：

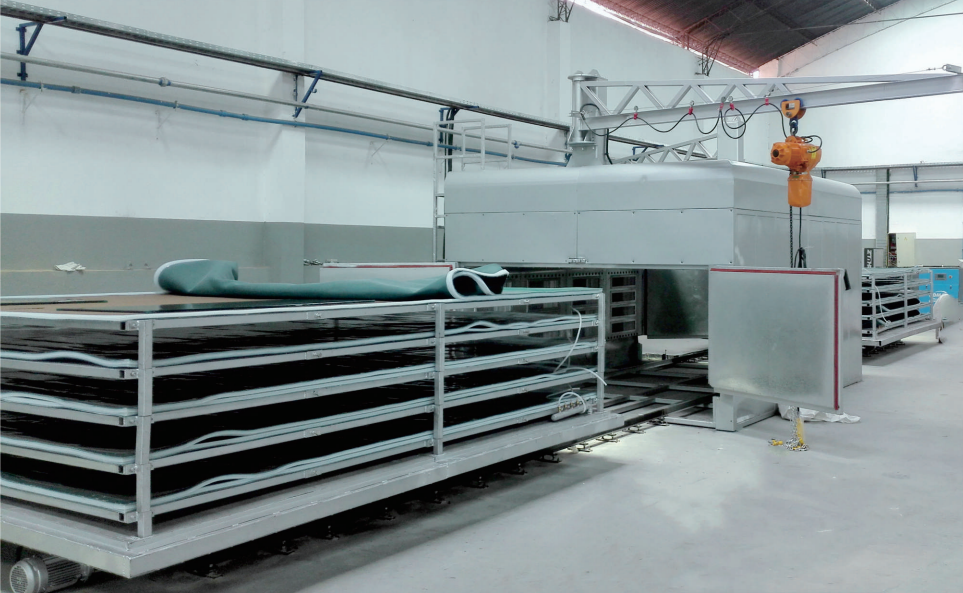

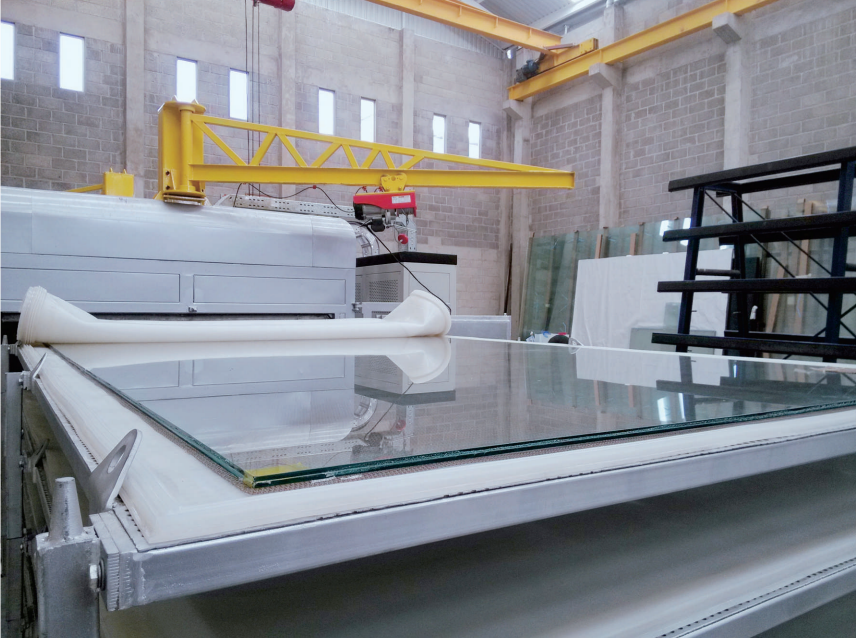

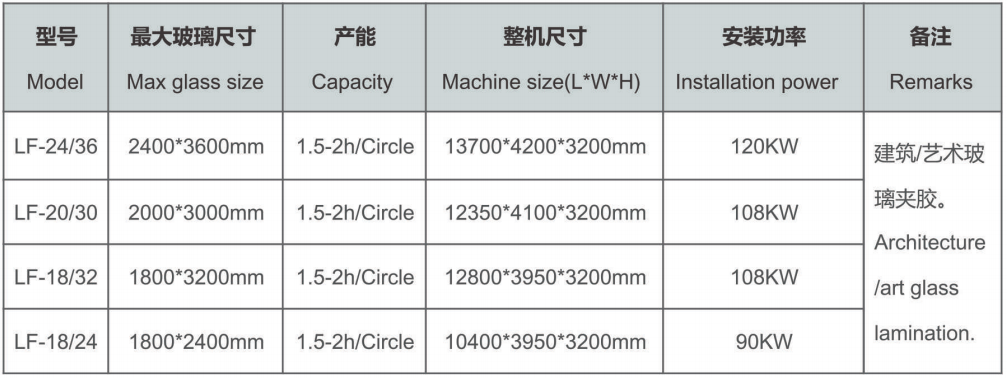

該真空夾膠爐采用控制方式分為手/自動
控制模式，整機控制系統性能可靠，故障率低，維護、操作方便，工作效率高。
The Furnace has manual/auto mode,reliable control system,
low failure rate,convenient operation and high efficiency running.
PLC 程序控制，可見屏幕界面操作，工藝參數可調，溫控準確等特點；
PLC program control,visible interface,adjustable technical parameters and accurate
temperature control.
西門子PLC 進行人機對話控制方式，系統可靠性高。SIEMENS PLC and reliable control system.
采集溫度用西門子溫度模塊，顯示和設定溫度在觸摸屏，使用高級權限登錄才能更改重要數據。
Temperature collecting by SIEMENS module,temperature display and setting on the screen.
夾膠爐/EVA Laminated Furnace
產品說明：

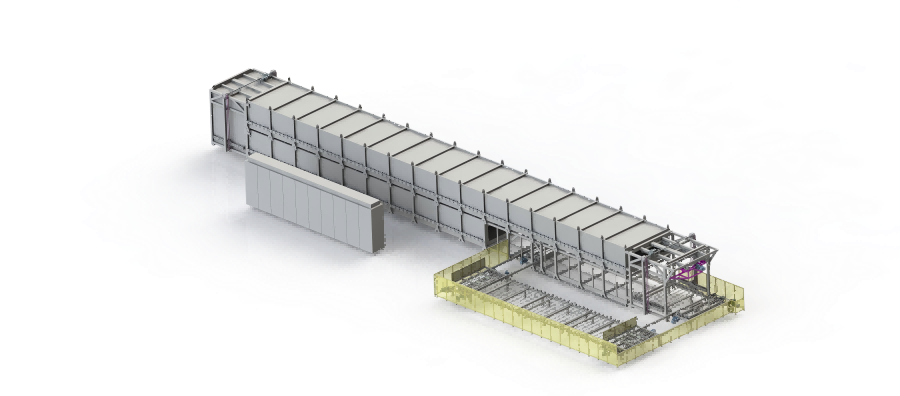

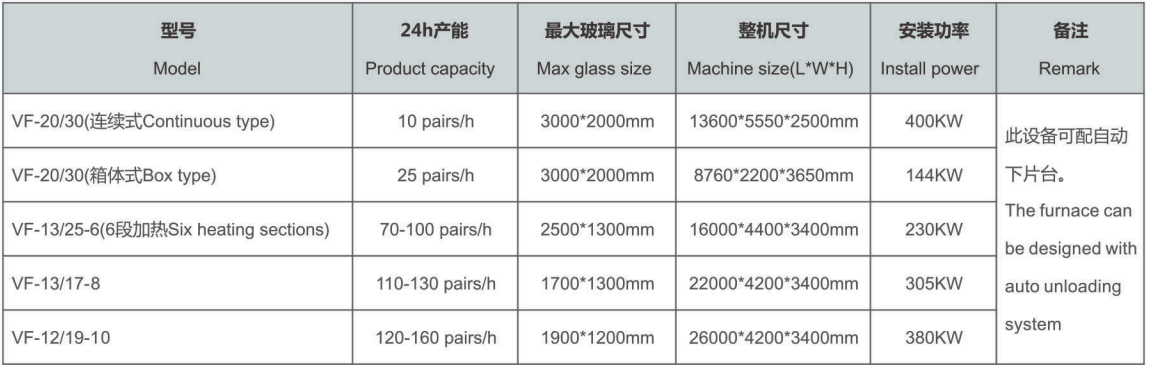

連續自動化生產，西門子 PLC 控制。產量大，成品率高。可根據客戶的玻璃加工尺寸定制。
Continuous production.Controlled by SIEMENS PLC.
High Capacity and high windshield production rate.Can be customized.

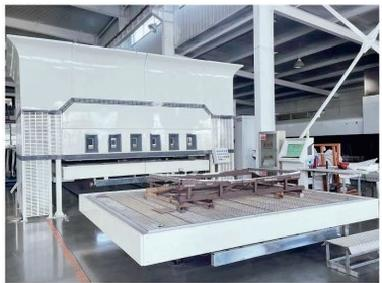

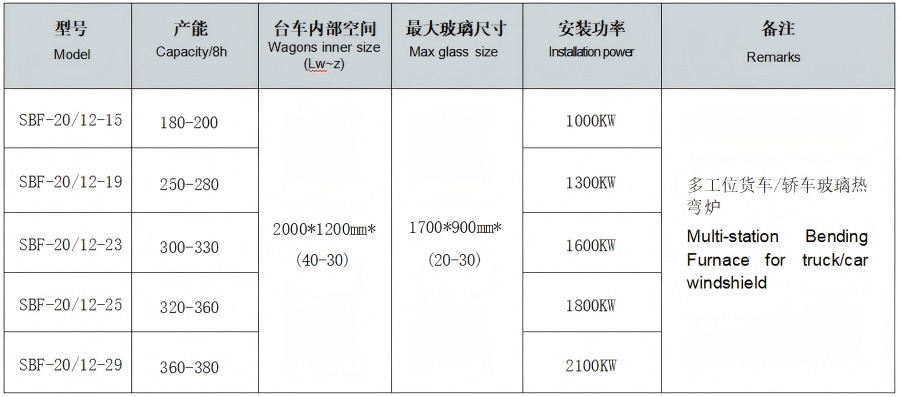

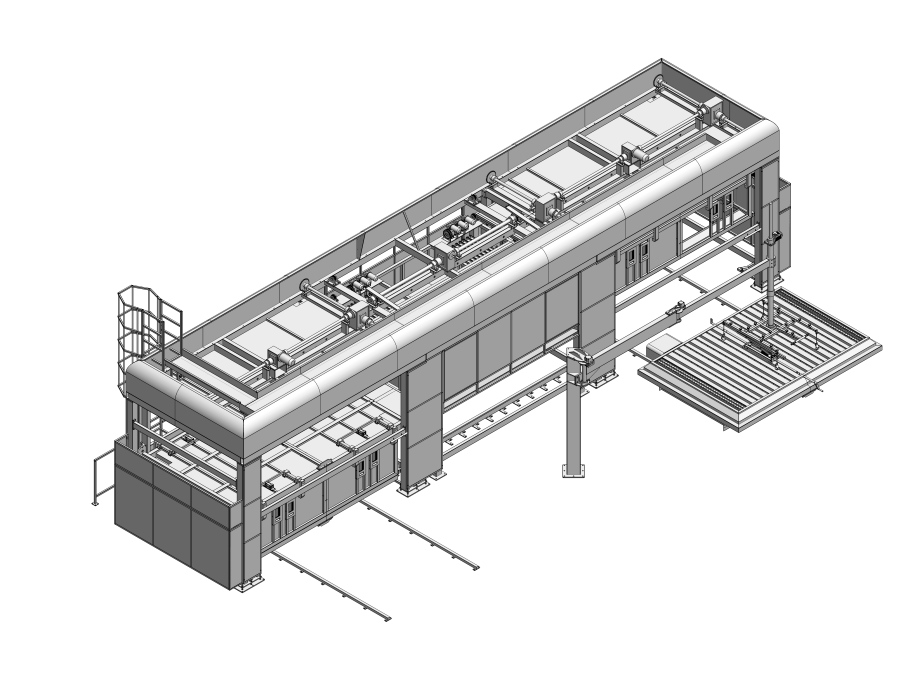

箱式熱彎爐
Box Type Bending Furnace
主要應用于高鐵/動車/機車前檔玻璃
The box type bending furnace is for high-speed railway/motorcar/automotive windshield bending.
計算機操作系統使用窗口動態圖像，支持DB、WSDL、PLC等多種方式的數據集成。
The operating system uses window dynamic images to support data integration in DB, WSDL,PLC.
熱彎爐的操作和程序的設置都由控制面板執行，安裝 無限點易控操作軟件，設備出現故障時，有警示和記錄，在計算機上查找故障根源，產品性能符合汽車及 建筑熱彎玻璃質量標準。With warnings and records.fault can be found in PC, convenient for trouble shooting.The performance is according with automotive and architecture glass quality standard.

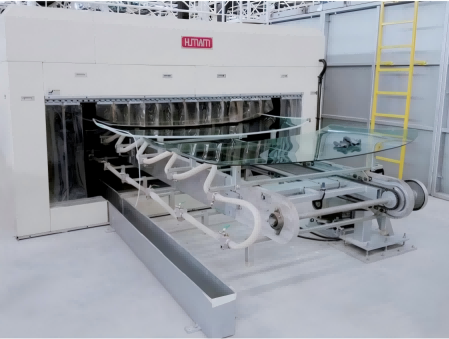

連續式小車前擋風玻璃熱彎爐/Con
產品說明：
電腦操作系統使用窗口動態圖像，便于人機交互對話，熱彎爐的操作和新程序的設置都由控 制面板執行(鍵盤和顯示器)。
The PC operation system is window dynamic image,which is good for human-computer interaction,the operation of bending furnace and the setting for new control program all controlled by PC.
在第一次生產過程中手動設置和儲存彎曲參數，所有技術參數可以在生產線上修改，并選擇保存 或不保存，種類可以達到3000種。
Over 3000 recipes can be saved in the system.
系統包含了安全系統、預警功能，參數的刪除可設定權限操作。
Includes the safety system,early alarm function.The parameters can be deleted by operator with permissions.
產品性能：符合GB-9656(2003) 汽車用安全玻璃質量標準。
Product performance:fulfill the GB-9656(2003)standard of the safety glass quality of car/bus.
連續式大巴前擋風玻璃熱彎爐/Con
產品說明：

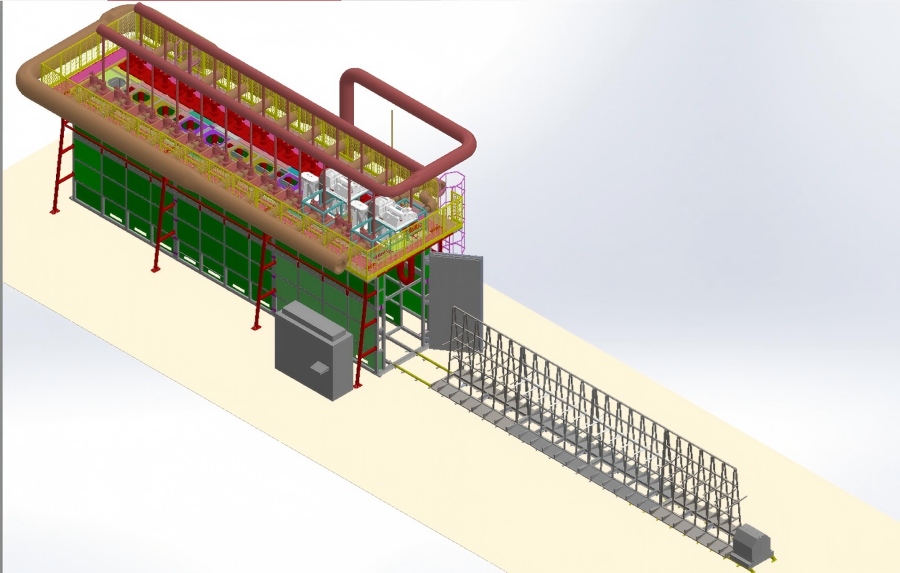

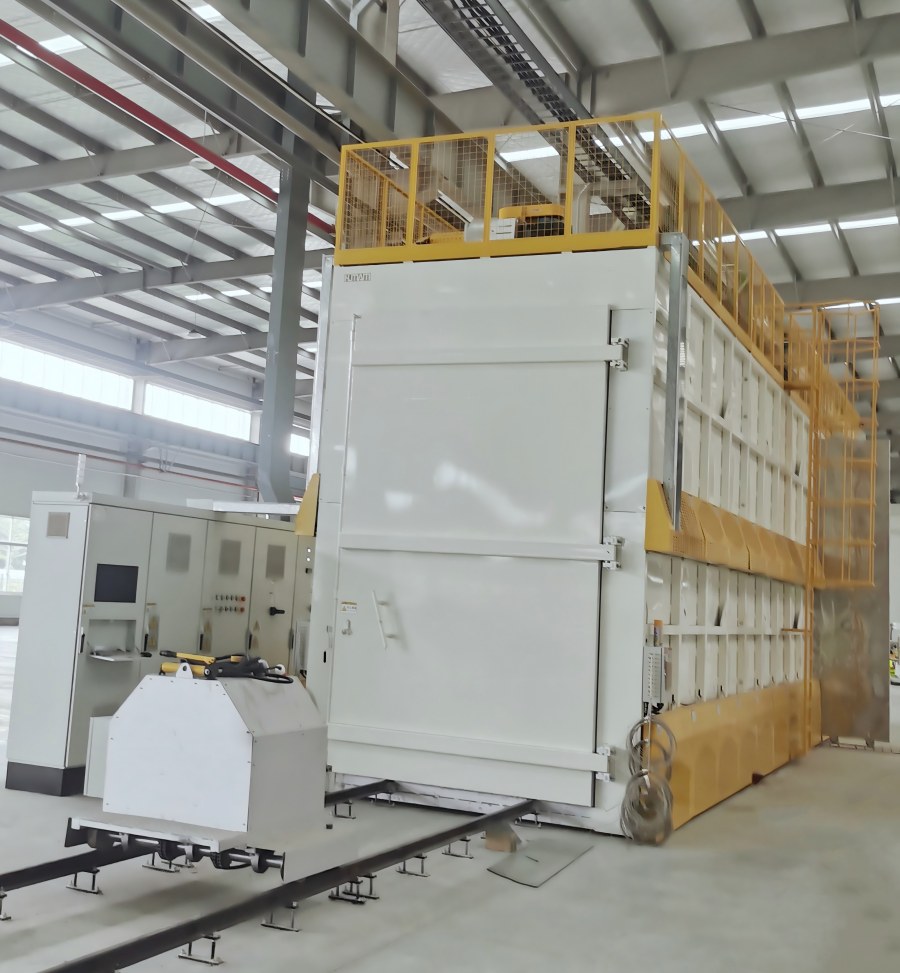

燃?xì)馐骄|(zhì)爐主要包括設備本體/燃控系統/電控系統。燃控系統采用燒嘴+輻射 管加熱方式，結合連續比例+開關控制系統，使其滿足工藝要求。
This Heat Soak Test Furnace with gas heating system includes the machine body, gas heating system and electric control system.Adopting burner (selfpreheating type) radiation heating mode and combining with pulse timing sequence control system to complete gas heating.Combine with continuous proportion and switch control system, make it meet the requirements of production.

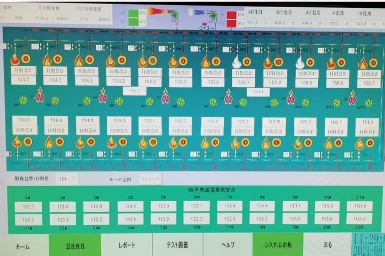

設備的控制和可視化被集成在工藝控制和可視化系統中?？梢暬到y(tǒng)將提 供必要的總體顯示，成批顯示和單獨顯示，帶有歷史跟蹤和報警系統。
The control and visualization of the equipment is integrated into the process
control and visualization system.The visualization system will provide the necessary overall display、batch display and separate display,has history tracking and alarming system.
可通過畫面可以調整工藝參數的設定值，而系統也有工藝參數的歷史記錄和實時跟蹤。The set value of process parameters can be adjusted through the screen,the system saves historical records and real-time tracking of process parameters.
鋼化玻璃均質爐-燃?xì)馐?Heat Soa
產品說明：

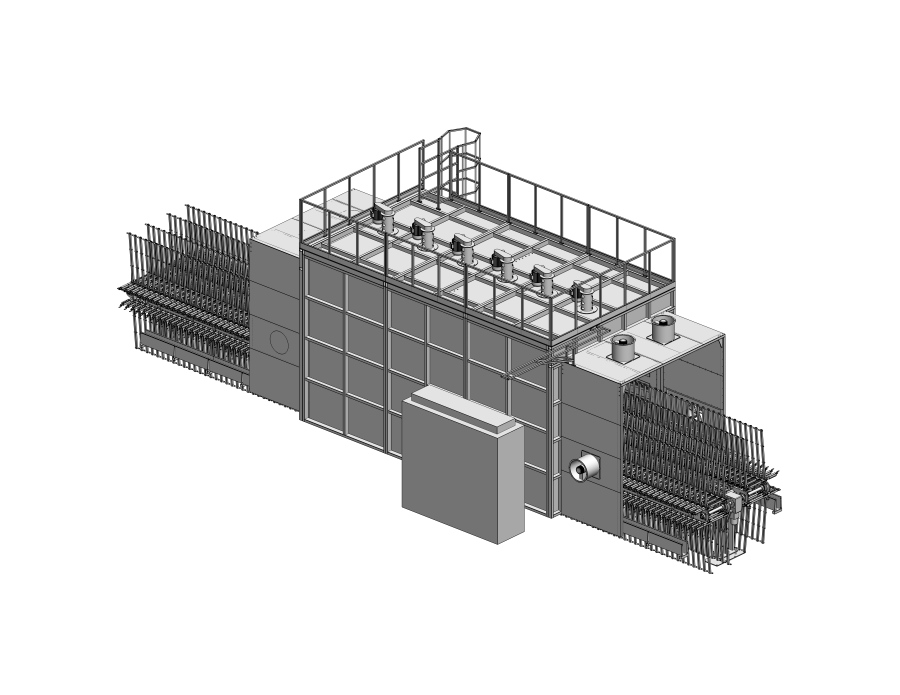

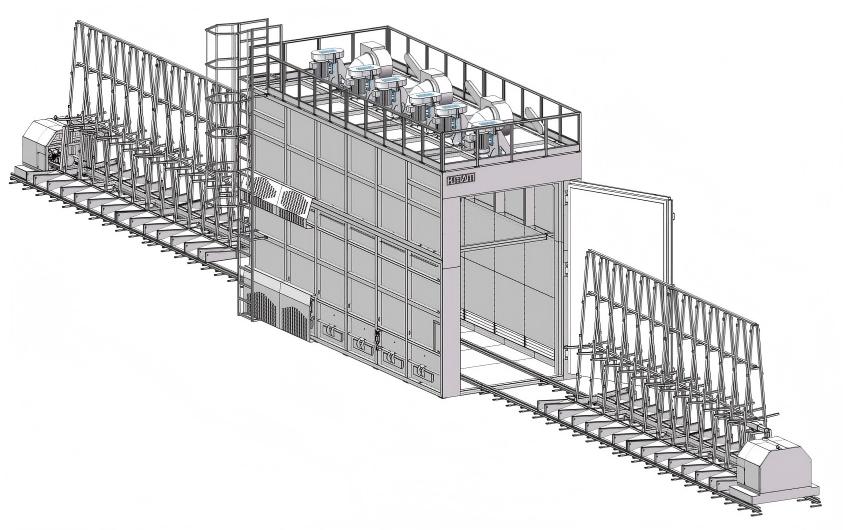

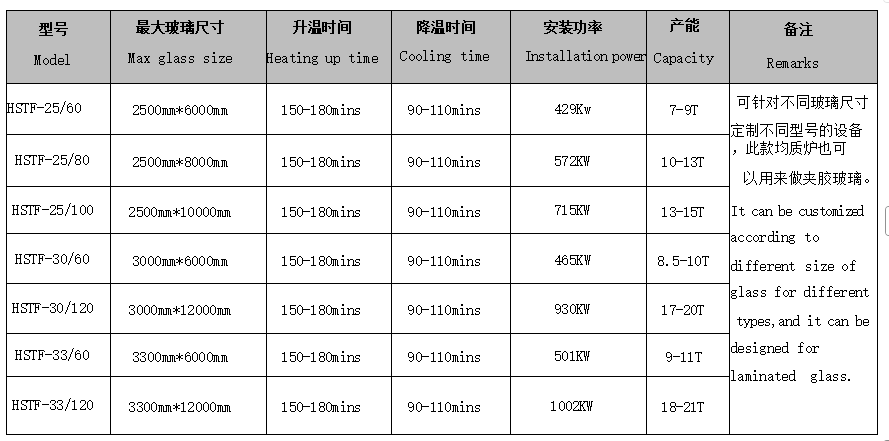

本鋼化玻璃均質爐根據歐洲強化玻璃安全性能測試標準設計制造。加熱器通斷 采用固態繼電器，工藝參數及程控使用電腦記憶存儲及智能控制，溫度調節模式 以PLC為主的電氣控制系統自動完成。
The Heat Soak Test Furnace was designed and manufactured according to European safety performance test standard of toughened glass, energization and electricity stoppage of heater adopt solid state relay;technological parameter and program control use computer memory saving and intelligent control, temperature adjustment mode is automatically accomplished by PLC control system.

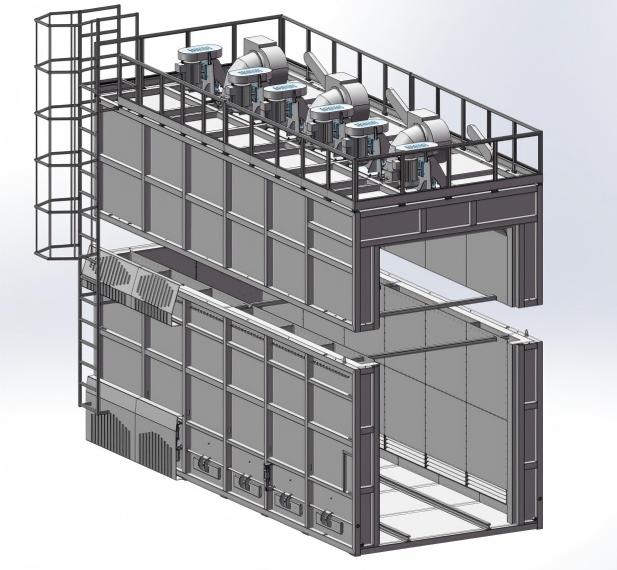

上下分體結構
Top and bottom split structure
雙開門 Heat soak test furnace with two wagons

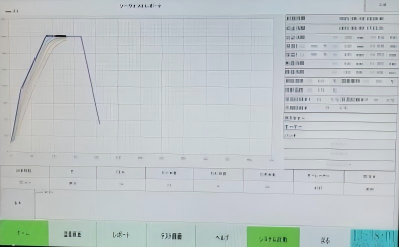

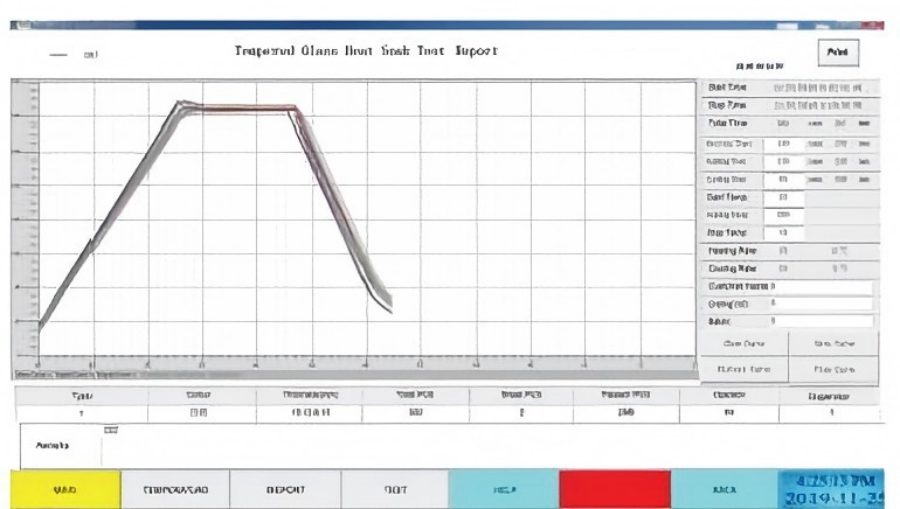

溫度曲線自動存儲，利用循環風機使?fàn)t腔內溫度快速、均勻的升溫和降溫，從而 減少鋼化玻璃的自爆。電腦PID智能控制設備的自動加熱及冷卻，提供玻璃表面溫度監視系統。
Automatic saving temperature curve,use convection blower make the temperature in the furnace fast heating and cooling,reduce the self explosion of tempered glass.The automatic heating and cooling are intelligently controlled by computer PID.Provide glass surface temperature monitoring system.
產品性能符合以下標準：
Furnace performance accord with below standard: EN14179-1:2005、EN14179-1:2016、
DIN 18510-4&CE.GB 15763.4-2009
鋼化玻璃均質爐-電加熱式/Heat S
