全自動玻璃深加工生產線上下片方案2/Auto Loading Unloading System For Glass Processing Lines介紹

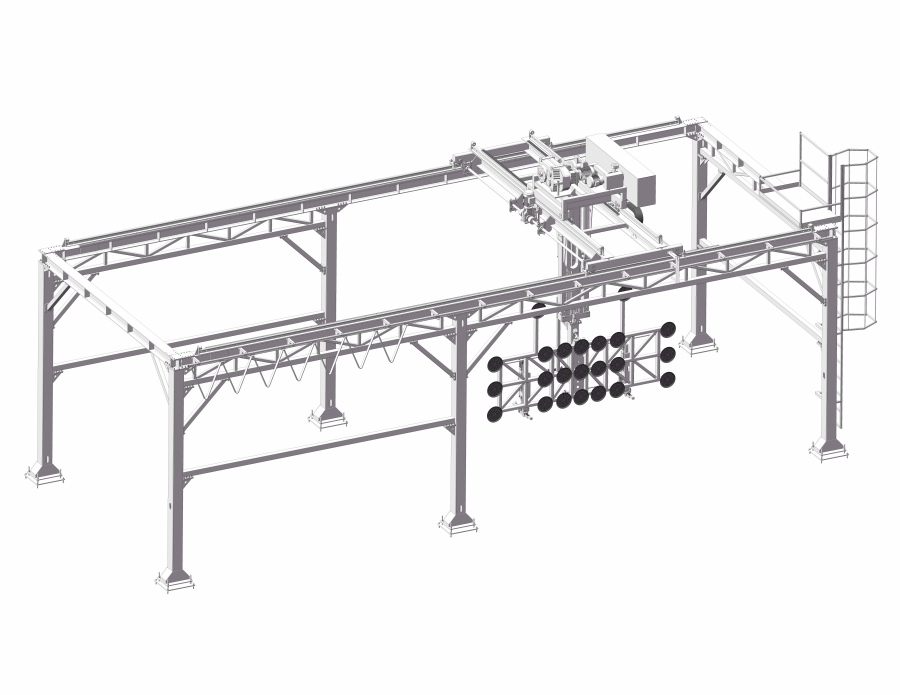

產品說明： 中空線自動上下片 Auto Loading unloading system for IG line 中空上片臺動力系統采用伺服電機。 移動升降翻轉電機變速度均為無級變速， 傳送采用變頻電機；減速機使用精密行星減速機。 采用全閉/半閉環控制系統，對產品定位精準，系統運作穩定。 The vertical loading table use servo motor;The variable speed of the moving/rising and tilting motor are infinitely variable speeds,conveying use variable frequency motor;and precision planetary reducer; Adopts full-closed loop control system for precisely positioning and stable running. 中空下片臺XYZ軸采用伺服電機。 The X,Y,Z axis of Gantry unloader use servo motor. 下片臺XY 軸移動采用齒輪齒條機構，運行平穩。 The X,Y axis of Gantry unloader use gear mechanism.Make sure stable running. 采用全閉環控制系統，對產品定位精準，系統運作穩定。 Adopts full-closed loop control system for precisely positioning and stable running. X 和Y軸行走和上升下降的動作由伺服馬達控制操作，吸盤吊能自動檢測到玻璃居中吸取然后下 片到玻璃架上。吸盤吊能前后，左右，上下移動。 The Xand Y axis movement and lifting up&down function of the suction cup lifter controlled by the Servo motor.The suction cup system can lift up and down,move forwards and backwards,move left to right. 自動完成中空成品的分箱下片 Unloading to different boxes automatically by gantry unloading system.
產品說明：
主要應用于轎車/貨車前擋玻璃的預熱抽真空處理。
For windshield pre heating and vacuum processing after assembling with PVB.
采用西門子PLC 控制系統，西門子溫度模塊采集溫度，觸摸屏顯示。
With SIEMENS PLC control system,SIEMENS temperature module collects temperature and display on screen.
可全自動或者手動操作，爐腔內受熱均衡，產品質量高。
Comes with Auto and manual modes,furnace inside heating evenly.
設備有故障報警功能，觸摸屏顯示報警狀態，PLC 輸出蜂鳴器提示。
The system has fault alarm,alarm status shown on screen,buzzer warning alarm.
產品性能符合GB-9656 汽車用安全玻璃質量標準。
The product performance is accord with the quality standard of GB-9656 automotive safety glass.
抽真空爐/Pre-heating Vacuum Fu
產品說明：
在線理片系統用于磨邊前，鋼化前，中空前和夾膠前玻璃儲存和分揀。讓產線更合理，更節能，更高效。
The sorting system is used for glass storage and sorting before edging line,tempering furnace,IG line and laminated line.To make more reasonable,energy saving and high efficient production line.
立式理片系統
Vertical Sorting Buffer
立式理片籠Vertical Sorting Buffer
對接ERP 有效跟蹤
Connecting ERP system for tracking
成品分架
Sorting rack for finished products
更有序，更高效
Organized and high efficiency
分架系統
Glass Assorting System
臥式理片系統
Horizontal Sorting System
余料架
Offline Storage System
玻璃理片系統 /Glass Sorting Sy
產品說明：
該真空夾膠爐采用控制方式分為手/自動
控制模式，整機控制系統性能可靠，故障率低，維護、操作方便，工作效率高。
The Furnace has manual/auto mode,reliable control system,
low failure rate,convenient operation and high efficiency running.
PLC 程序控制，可見屏幕界面操作，工藝參數可調，溫控準確等特點；
PLC program control,visible interface,adjustable technical parameters and accurate
temperature control.
西門子PLC 進行人機對話控制方式，系統可靠性高。SIEMENS PLC and reliable control system.
采集溫度用西門子溫度模塊，顯示和設定溫度在觸摸屏，使用高級權限登錄才能更改重要數據。
Temperature collecting by SIEMENS module,temperature display and setting on the screen.
夾膠爐/EVA Laminated Furnace
產品說明：
連續自動化生產，西門子 PLC 控制。產量大，成品率高。可根據客戶的玻璃加工尺寸定制。
Continuous production.Controlled by SIEMENS PLC.
High Capacity and high windshield production rate.Can be customized.
箱式熱彎爐
Box Type Bending Furnace
主要應用于高鐵/動車/機車前檔玻璃
The box type bending furnace is for high-speed railway/motorcar/automotive windshield bending.
計算機操作系統使用窗口動態圖像，支持DB、WSDL、PLC等多種方式的數據集成。
The operating system uses window dynamic images to support data integration in DB, WSDL,PLC.
熱彎爐的操作和程序的設置都由控制面板執行，安裝 無限點易控操作軟件，設備出現故障時，有警示和記錄，在計算機上查找故障根源，產品性能符合汽車及 建筑熱彎玻璃質量標準。With warnings and records.fault can be found in PC, convenient for trouble shooting.The performance is according with automotive and architecture glass quality standard.
連續式小車前擋風玻璃熱彎爐/Con
